WlinkSimpleTestHarness

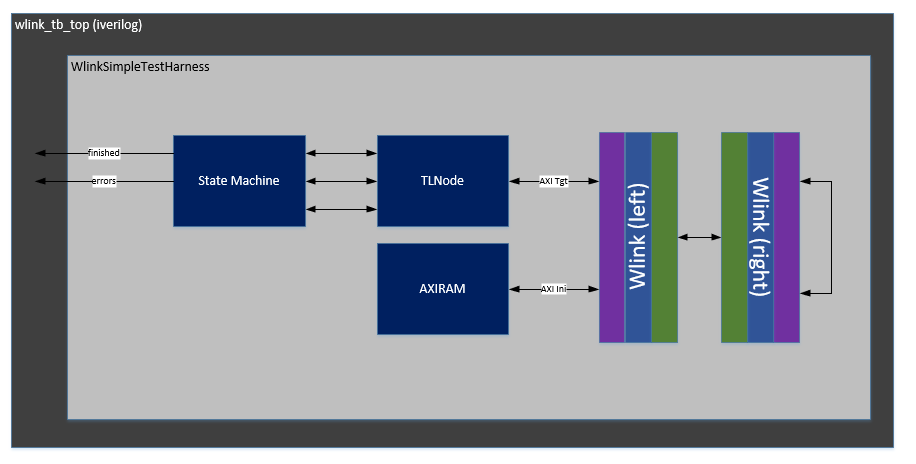

The WlinkSimpleTestHarness is a basic design wrapper which instantiates two Wlinks and drives some simple AXI traffic through the two Wlinks. There is a “LEFT” and “RIGHT” Wlink instance. LEFT/RIGHT in this case are just names to help correspond to the diagram presented below.

There is a small state machine that will generate transactions. As showing in the diagram, the state machine will perform a write on the AXI bus. This AXI write will propagate through the Wlink instances and access the AXI4RAM connected to the LEFT instance. Responses follow the same path back.

The wlink_tb_top is the main top level of the testbench. It mainly instantiates the WlinkSimpleTestHarness and exposes a few simple signals to know when the harness has completed the test.

Currently a user can generate a WlinkSimpleTestHarness and run a sim in the verif/ directory.

Note

Since the TestHarness is a generic test which tests certain portions of the design and due to the fact that it is generated with Chisel, it is possible that some portions of the design are optimized away by Chisels dead code elemination transform.
